The Whisperpack® Series packages the best combo of water source heat pump and hydronic heating technology to maximize comfort.
Description

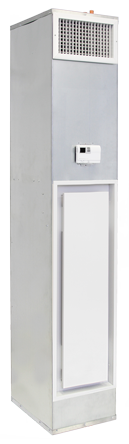

Whisperpack® Water Source Air Conditioning and Hydronic Heat
If you’re looking for a unit that provides the reliable air conditioning of a water source heat pump with the near-silent heating of a fan coil, the Whisperpack® from Whalen delivers the best of both worlds.
Combining the best characteristics of our field-proven compressorized and fan coil products, we’ve developed a unit that delivers superior air conditioning performance along with the operational characteristics found in our powerfully productive fan coil units.
Whisperpack® units benefit owners during the heating season through the use of a hydronic heating coil in lieu of reversing the refrigerant cycle. This allows for energy savings by turning the compressor off and diverting the condenser water to a heating coil.
True to our commitment to offer equipment that’s flexible enough to meet the design of the building rather than forcing a building to conform to limitations of the equipment, our Whisperpack® Air Conditioners with Hydronic Heating can be applied to any type of building.
They’re particularly advantageous for new construction or renovation of apartments, condominiums, hotels, senior living facilities, dormitories and office buildings. This philosophy behind Whisperpack® units isn’t limited to physical size or optional accessories, either. They’re capable of performing at peak operating efficiency at entering water temperatures between 85°F and 120°F.
Easy to Install and Service
By utilize a single set of risers, Whisperpack® units are able to stack from floor to floor, thereby simplifying the installation. For staged installation projects, cabinets can be shipped separately from the refrigerant chassis.
The chassis, which includes the complete refrigerant circuit, slides into the cabinet after the construction debris has been removed to ensure trouble-free operation at start-up.
When a chassis requires service, it can be quickly replaced in a matter of minutes by sliding the existing chassis out and sliding a spare chassis into the cabinet.
Efficient and Environmentally Friendly
With efficiencies up to 15.7 EER, Whisperpack® units are both environmentally and economically friendly. Operating well above the ASHRAE 90.1 minimum, these units exceed minimum thresholds for most utility rebate and incentive programs. All units run on Ozone-friendly R-410A refrigerant.
Small in Size … Quiet in Operation
Since we offer one of the smallest footprints in the industry along with customization capabilities including cabinet height, riser locations, handing and discharge arrangements and sizes, your new Whisperpack® units will be installed and operating in significantly less time.
Dual-level vibration isolators are integrated into every unit to help minimize vibration and noise transmission. An acoustically insulated compressor enclosure further reduces any sound transmission, making these units ideal for noise-sensitive applications.
Supply Opening
Left, Right, Front, Back and Top Combinations – all supply openings are painted black to block the view into the unit. When one unit is used for two rooms, a sight baffle is placed between the two grilles.
Supply Grille
Aluminum construction minimizes future maintenance and eliminates oxidation that can be caused from condensation.
Supply grilles are offered in single or double deflection, with or without an opposed blade damper.
Supply/Return Risers
These are provided to meet the requirements of the job site. Custom lengths can be provided to meet the exact floor-to-floor dimension of the project.
Risers are factory-installed and piped to ball valves within the cabinet, or they can be shipped separately to the job site.
Riser Cover
A galvanized steel protective cover is standard to avoid riser damage during shipping, handling and installation.
Control Valves
A 3-way control valve is standard on every Whisperpack® unit. For added flexibility, we offer an option for two 2-way valves for use with variable speed pump systems.
Ball Valves
Shutoff valves with hose bib (GHT) connection are standard on every unit.
Fan/Motor Assembly
Plug-in type fan/motor assemblies are easily removed through the return air opening.
Insulation
All units are available with glass fiber high density insulation, with thermal and acoustical properties.
Cabinet
Single-piece galvanized monocoque construction with a snap-lock front panel prevents air leakage through cabinet seams to increase efficiency.
Refrigeration Chassis
The removable chassis is a floating design with insulated compressor compartment and vibration isolation.
Hydronic Heating Coil
For heating, a 2-row or 3-row integral water heating coil utilizes the hot water supply piping in the building to eliminate the need to operate the compressor when heat is needed.
Water Hoses
Stainless steel braided hoses connect the chassis to the supply and return water piping, while isolating the compressor vibration from the building’s piping system.
Inner Service Panel
Removable for access to unit control wiring and internal piping.
Filter
Filters are available in “throwaway” and permanent options.
Drain Pan
The drain pain covers the entire unit bottom.
Thermostat
Several thermostat options are available in the following configurations:
- Low voltage
- Plug-in or remote mounted
- Manual or automatic changeover
- Electro-mechanical or electronic
Acoustical Panel
Standard and flush-mounted designs feature a hinged door to allow for filter removal – without the use of tools.
Return Air Grille
The aluminum grille comes with standard or removable core capabilities.
Unit Tagging
Each Whisperpack® unit from Whalen is individually boxed and tagged with factory and customer-supplied information. Each unit can be tagged with specific room numbers, riser numbers or any other special requirements of the project.
AHRI Certified
